X20

SPECIFICATION

Material: 6061 Aluminum Alloy

Tire Size: 20 X 4.0 Inches

Motor: 1000w (peak) High-Speed Brushless Motor

Torque: 65 N.m

Battery 1: 48v 14.4ah Lithium-Ion Battery

Battery 2: 48v 7.8ah Lithium-Ion Battery

Speed: 0-31MPH

14.4Ah Battery Version Mileage: 62 Miles (ECO Mode)

22.2Ah Battery Version Mileage: 93 Miles (ECO Mode)

Charging Time: About 7h

Maximum Climbing Degree: 30°

Brakes: Hydraulic Disc Brakes

Hub & Power: Integrated Hub Motor with

PRODUCT DESCRIPTION

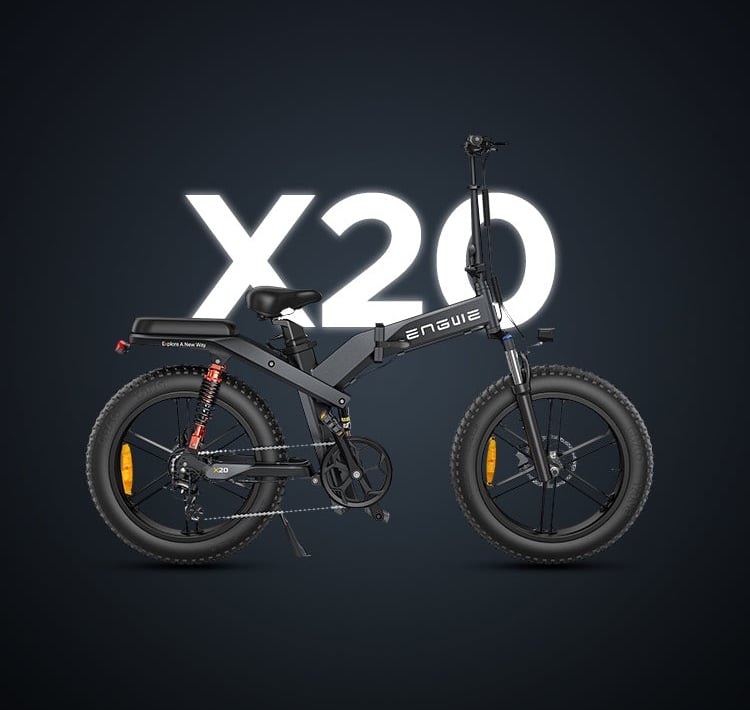

Introducing the ENGWE X20, a powerhouse of performance and innovation designed to take your riding experience to the next level. Built with a sturdy 6061 aluminum alloy frame, this e-bike combines durability and style with the versatility to handle any terrain.

With its integrated hub motor and cutting-edge features, the ENGWE X20 is built for riders who seek both performance and convenience. Whether you're commuting or exploring new paths, this e-bike offers a perfect blend of speed, range, and reliability.

Hydraulic Disc Brakes

A front and rear brake provide powerful stopping power with a maximum braking distance of 12m.

Shimano 8-Speed Shifter

Keeping You Safe & Lighting The Path Ahead

Seamless transition with a 160mm disk brake rotor and an IP65 waterproof speed sensor.

The High-Brightness front LED ensures that the road ahead is well-lit with its impressively long range.

SIZE

FRONT

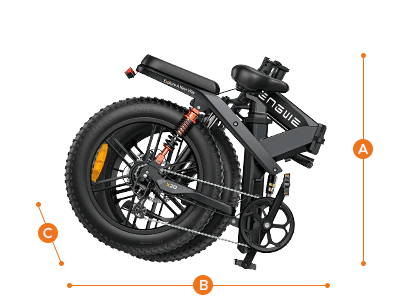

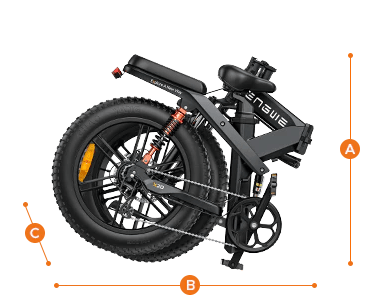

FOLDED

A -- Height: 44.6 inches (113.5 cm)

B -- Total Length: 67.1 inches (170.5 cm)

C -- Reach: 17.2 inches (43.7 cm)

D -- Standover Height: 24.9 inches (63.3 cm)

E -- Wheelbase: 44.3 inches (112.5 cm)

F -- Minimum Saddle Height: 33.2 inches (84.5 cm)

A -- Length: 31.1 inches (79 cm)

B -- Width: 40.5 inches (103 cm)

C -- Height: 26.7 inches (68 cm)

Rider Height: 5.4 (ft) - 6.2 (ft)
Payload Capacity: 150KG (300lbs)
Package Dimensions (LWH): 144cm - 32cm - 72cm

Please note: There may be a difference of 0~5 CM between measured and actual data.

ENGWE X20

SERIES X
